What is tinned copper wire?

Tinned copper wire is a type of copper wire that has been coated with a thin layer of tin. This process involves submerging the copper wire in molten tin or applying a tin layer through an electroplating process. Here are some key points about tinned copper wire:

Advantages of Tinned Copper Wire

Corrosion Resistance:

Increased Durability: The tin coating provides excellent resistance to corrosion, which is particularly important in environments where the wire might be exposed to moisture, chemicals, or other corrosive elements.

Extended Lifespan: The tin layer prevents oxidation of the copper, ensuring the wire lasts longer than bare copper in harsh conditions.

Improved Solderability:

Ease of Use: Tinned copper wire is easier to solder compared to bare copper wire, as the tin coating enhances the soldering process by allowing the solder to flow more smoothly and adhere better.

Reliable Connections: This ensures stronger and more reliable electrical connections, which is crucial in many electronic and electrical applications.

Electrical Conductivity:

Maintained Conductivity: The tin layer does not significantly affect the electrical conductivity of the copper, ensuring that tinned copper wire maintains good electrical performance.

Common Applications

Marine Applications:

Marine Electronics: Tinned copper wire is extensively used in marine environments due to its excellent resistance to saltwater corrosion.

Boat Wiring: Ideal for boat wiring and other applications where exposure to water and salt is common.

Electronics:

Circuit Boards: Used in the manufacturing of electronic circuit boards and other components where reliable soldering is required.

Cable Assemblies: Often used in the production of cable assemblies for various electronic devices.

Electrical Systems:

Automotive Wiring: Employed in automotive wiring systems due to its durability and resistance to the elements.

Solar Panels: Used in solar panel installations where long-term exposure to the elements is a factor.

Power Generation and Distribution:

Power Cables: Utilized in power generation and distribution networks, particularly in areas with challenging environmental conditions.

Manufacturing Process

Annealing: The copper wire is first annealed to make it more pliable.

Tinning: The annealed copper wire is then passed through a bath of molten tin or an electroplating bath to apply the tin coating.

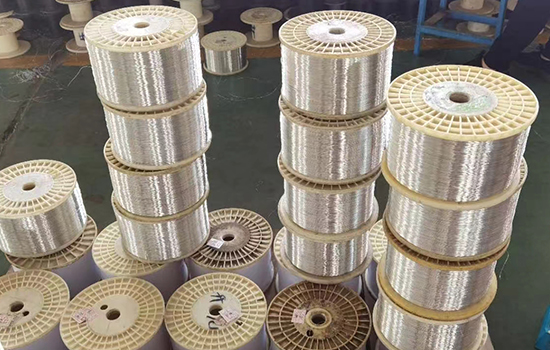

Cooling and Spooling: After tinning, the wire is cooled and wound onto spools for distribution and use.

Types of Tinned Copper Wire

Solid Tinned Copper Wire: A single, solid strand of copper with a tin coating.

Stranded Tinned Copper Wire: Composed of multiple strands of copper wire twisted together, all coated with tin. This type is more flexible and easier to work with compared to solid wire.

Conclusion

Tinned copper wire combines the excellent electrical properties of copper with the added benefits of tin coating, such as corrosion resistance and improved solderability. Its versatility and durability make it suitable for a wide range of applications, particularly in environments where exposure to moisture and corrosive elements is a concern.
